Flameproof, Increased Safety, Dust Protection Class - Zones - Divisions Certified ATEX / IECEx / c CSA us

Flameproof Exd IIC Gb, Increased Safety Exe IIC Gb and Dust
Extb IIIC Db II 2 GD.
Certificate No’s: Baseefa06ATEX0058X and IECEx BAS 06.0015X.
Suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas
Groups IIA, IIB and IIC.
Construction and Test Standards: IEC/EN 60079-0, IEC/EN
60079-1, IEC/EN 60079-7 and IEC/EN 6079-31.
Ingress Protection: IP66, IP67 and IP 68 (30 metres for 7 days) to
IEC/EN 60529 and NEMA 4X.
Deluge Protection to DTS01.
Operating Temperature Range: -60°C to +80°C.
Assembly Instruction Sheet: AI 305.

Flameproof AExd IIC Gb, Increased Safety AExe IIC Gb and Dust
AExtD Zone 21.
Explosion-proof Class 1 Division 2 Groups ABCD, Class II
Division 2 Groups EFG, Class III.
Certificate No’s: CSA1015065 for Marine Shipboard Cable.
Construction and Test Standards: UL 60079-0, UL 60079-1, UL
60079-7, ISA 60079-31, CSA 22.2 No: 60079-0, CSA 22.2 No:
60079-1, CSA 22.2 No: 60079-7, CSA 22.2 No: 60079-31, UL 2225

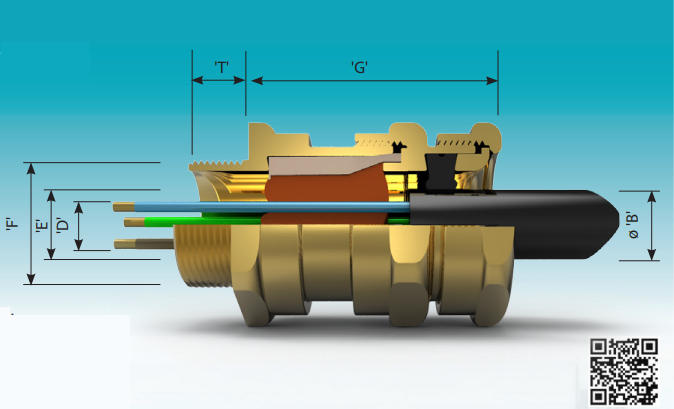

Provides an inspectable, repairable barrier seal to the
individual insulated cores within the cable, and prevents entry
of the products of an explosion into the cable.
Assembly of the cable gland compresses and distributes the
compound evenly to create a barrier seal at the point of entry
into the enclosure.
Provides a cable retention seal onto the cables outer sheath.
Manufactured in Brass (standard), Nickel Plated Brass, 316
Stainless Steel or Aluminium.
Brass NPT entries are nickel plated as standard.

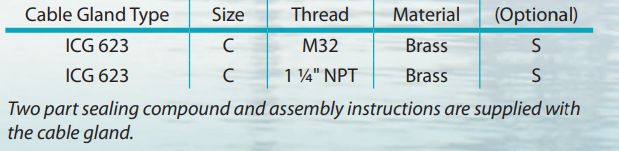

Format for ordering is as follows: Alternative Seal (S), add suffix S to ordering information.

ICG 623 Cable Gland – Hawke
