ICG/653/ UNIVERSAL

Flameproof, Increased Safety, Dust Protection Class - Zones - Divisions Certified ATEX/IECEx

1. Inspectable Deluge Seal – Offering IP66, IP67, IP68 &
IP69 Ingress Protection
2. Transparent Elastomeric Fully Inspectable Compound Pot – compatible with both injectable resin
and 2 part compound
3. Reversible Armour Clamp – For all types of armour
and braid.
4. Patented Cable Gland Tightening Guide – Helps
prevent damage caused by over tightening
5. Unique Rear Seal – Offering ultimate sealing over an
extremely wide cable acceptance range.

  • Two Independent Elastomeric Exd flameproof seals on cable outer sheath – The double seals provide superior cable retention over standard unarmoured Cable Glands
  • Rounded Cable entry to prevent cable damage

Dual certified Exe/Exd barrier gland, providing a seal around individual cable cores, especially for cables that exhibit “cold flow” characteristics, are not effectively filled or
have hygroscopic fillers. For use with single wire armour ’W’, wire braid ‘X’, steel tape armour ‘Z’ elastomer and plastic insulated cables. The ICG/653/UNIVERSAL is available
with either ExPress liquid barrier resin or QSP 2-part hand mix compound, both with a cure time from 30 minutes

Two part sealing compound and assembly instructions are supplied with the cable gland

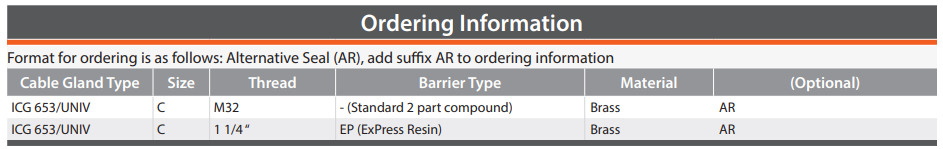

Example Code: ICG 653/UNIV C M32 EP Stainless Steel

For all sales and product enquiries please contact Hawke Sales
T: +44 (0) 161 830 6698 E: sales@ehawke.com

Barrier Gland Options

ExPress barrier resin – a liquid injectable and fast curing resin, allowing for faster installation time than
traditional 2-part compounds. Utilising a unique clear compound chamber allowing full visibility of the
flameproof seal during installation and inspection, the ExPress barrier resin is unparalleled as a global
solution.
QSP 2-part hand mix putty, simple to use with a cure time from 30 minutes. Particularly useful where
termination space is limited or cables are running horizontally to the installation area. Can be inspected and
repaired if necessary, allowing for the very highest level of safety

Barrier Gland Options Tightening Guide

Whilst Hawke International goes to great lengths to ensure products are designed to be as simple to install,
inspect and maintain as is possible, differing levels of competency, training and understanding can lead to
glands being incorrectly installed. With hazardous area products, any poor installation issues can not only lead
to expensive equipment failure, but also potential explosion risks and associated risk to life.

To help address issues with the overtightening of cable glands and the resultant damage to cables and seals,
Hawke International has developed the patented INBUILT TIGHTENING GUIDE.
Without the need for fiddly measuring systems, the guide provides a permanent visual indication of the gland
tightness through installation, inspection and maintenance.

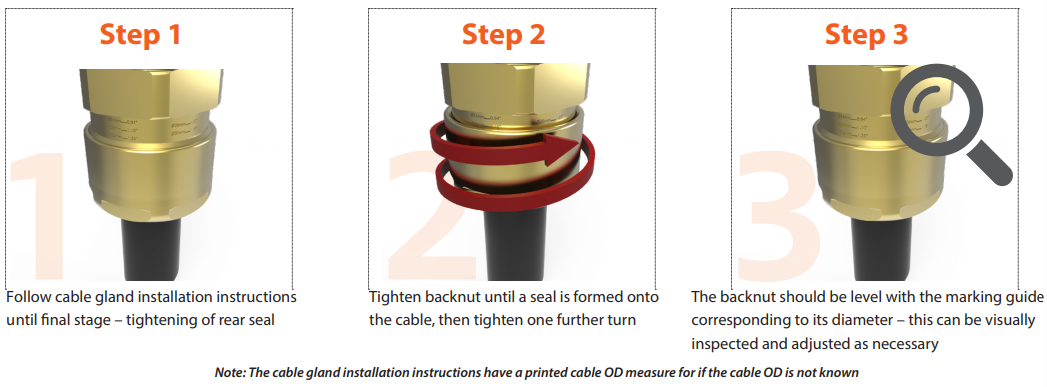

How it works

The gland is permanently marked with various lines/numbers indicating the correct tightening level related
to the cable diameter. Following the relevant cable gland Installation Instructions, the back seal should be
tightened until a seal is formed on the cable outer sheath and then tightened one further turn.

Product design and specifications are subject to change without notice. Please check the Hawke website for latest specifications.
